Product Description:
| Genearal Features |
| Brand | AUO | Model Number | A104SN03 V1 |
| Diagonal Size | 10.4" | Resolution | 800(RGB)×600, SVGA 96PPI |
| Active Area | 211.2(W)×158.4(H) mm | Outline Dim. | 228.4(H)×175.4(V) ×6.5(D) mm |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock | Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/50/60 | Operating Mode | TN, Normally White, Transmissive |
| Interface | TTL (1 ch, 6/8-bit) + SPI , 60 pins FPC | Life Span | 10k |
| Weight | 400±20g | Power Supply | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C
Storage Temperature: -20 ~ 70 °C |
|
| More details please contact us |
Features:
10.4-Inch Industrial-Grade SVGA TFT LCD Display
Product Description:

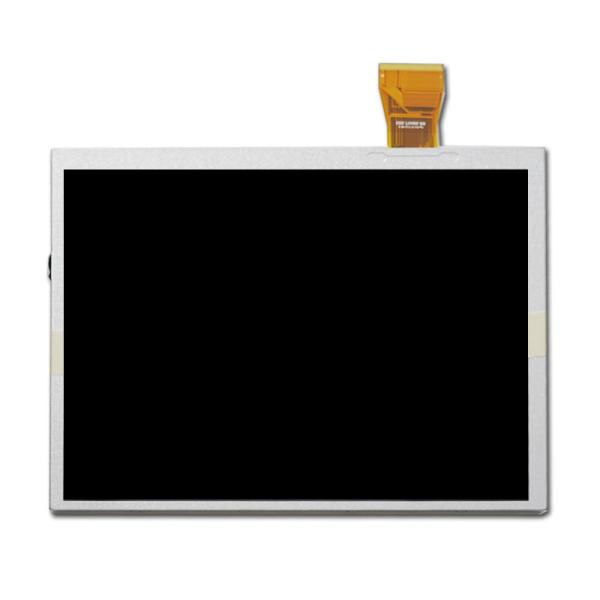

The AUO A104SN03 V1 is a high-performance 10.4-inch
industrial-grade TFT LCD display designed for a wide range of
applications. With its SVGA resolution of 800 x 600 pixels and a
high pixel density of 96 PPI, this display offers crisp and
detailed visuals for an enhanced user experience.
Key Features:
Large 10.4-Inch Display Size: The 10.4-inch diagonal screen size
provides a spacious viewing area, making it suitable for
applications that require a larger display without compromising on
compactness.
SVGA Resolution: The 800 x 600 pixel resolution delivers a sharp
and clear image quality, allowing for the effective representation
of complex information, graphics, and user interface elements.
Versatile Interface: The display supports a TTL (1 channel,
6/8-bit) + SPI interface, allowing for easy integration with a
variety of embedded systems, industrial controllers, and display
controllers.
Applications:
The AUO A104SN03 V1 10.4-inch industrial-grade SVGA TFT LCD display
is well-suited for a wide range of applications, including:
Industrial Automation and Control Systems
Transportation and Logistics Equipment
Medical and Healthcare Devices
Digital Signage and Kiosks
Marine and Outdoor Displays
Automotive Infotainment Systems
Support and Services:
- Troubleshooting and diagnosis of technical issues
- Repair and replacement services for defective parts
- Firmware and software updates for improved performance
- Technical documentation and user manuals
- Technical training for technicians and installers
