Product Description:

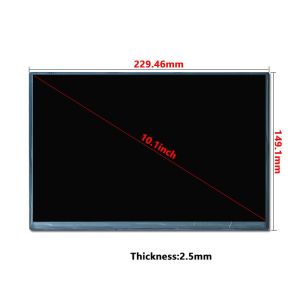

Introducing our advanced 10.1-inch medical-grade LCD (Liquid
Crystal Display) designed specifically for healthcare environments,
where precision, reliability, and optimal image quality are
paramount. Here's a feature description highlighting its key
attributes:
1) Medical-Grade Certification: Our 10.1-inch LCD display is
certified as a medical-grade device, meeting stringent industry
standards for safety, performance, and hygiene. It complies with
regulations such as IEC 60601 and FDA guidelines, ensuring its
suitability for use in medical settings, including hospitals,
clinics, and diagnostic centers.
2) High-Resolution Visuals: The display offers high-resolution
visuals with exceptional clarity, enabling healthcare professionals
to view diagnostic images, patient records, and medical data with
remarkable detail and precision. The display's resolution is
carefully optimized to present images and information accurately,
aiding in diagnosis, treatment planning, and medical documentation.
3) Anti-Glare and Anti-Reflective Coating: The display features an
anti-glare and anti-reflective coating that reduces reflections and
minimizes glare, even in well-lit environments. This enhances
visibility and reduces eye strain for healthcare professionals who
frequently work with the display for extended periods. It also
improves the readability and legibility of displayed content,
especially in environments with challenging lighting conditions.
Technical Parameters:
| Feature | Description |
| Model Number | 90-10123-1H1 |
| Viewing Angle(RLUD) | 85/85/85/85 |
| View Direction | ALL |
| Interface | LVDS 40 |
| Brightness(cd/m²) | 350 |
| LED Lifetime (hrs) | 20K |
| Contrast Ratio | 800 |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Application | It can be utilized in a range of wide range of medicals,
industries, including manufacturing, automation, transportation,
logistics, healthcare, process control, and more |
| Touchscreen Support | Optional touchscreen functionality (PCAP, capacitive or resistive) |
Support and Services:
Our Industrial TFT Display products are designed to provide
reliable performance in a variety of industrial environments. To
ensure the best use of your product, our Technical Support and
Services team offers a comprehensive range of support options to
assist you with any technical issues or questions you may have.
When you choose our Industrial TFT Displays, you gain access to our
expert technical support team. Our team is equipped with extensive
knowledge of our products and is dedicated to helping you resolve
any technical challenges quickly and efficiently. Whether you have
questions regarding installation, operation, or troubleshooting,
our support staff is here to provide the guidance you need.
In addition to direct support, we provide a variety of services to
enhance the performance and longevity of your Industrial TFT
Display. These services include firmware updates, product training,
and preventative maintenance advice. Our goal is to ensure that
your product operates at its best, with minimal downtime and
optimal functionality.
If you're experiencing a technical issue, we recommend consulting
the product manual that came with your display. It contains
detailed instructions on setup, usage, and troubleshooting. If the
solution is not found in the manual, our technical support team is
ready to step in and assist you further.
Our commitment to exceptional customer service means we're always
working to improve our support offerings. We continuously train our
support staff on the latest technologies and best practices to
ensure you receive the most up-to-date information and efficient
service possible.
Please note that our Technical Support and Services do not include
physical repair or replacement of parts. If your Industrial TFT
Display requires repair or replacement, please refer to the
warranty information provided with your product or contact our
customer service team for assistance.
We take pride in the quality and reliability of our Industrial TFT
Displays, and our Technical Support and Services team plays a
critical role in maintaining that standard. We are here to support
you throughout the life of your product, ensuring you get the most
out of your investment.
Some Classic Products in our company for reference( All products
can be tailored according to your requirements)
Size
(inch) | P/N | Resolution | Viewing
angle | Active Area
(mm) | Module Size
(mm) | Interface | OP℃ | Luminance(nit) |
| 2 | 90-02005-001 | 480*360 | IPS | 40.8*30.6 | 46.1*40.96*2.54 | RGB | -20~70 | 200-500 |
| 2 | 90-02009-001 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 90-03507-001 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 90-03521-BH1 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 90-04304-001 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 90-05024-001 | 720*1280 | IPS | 61.78*109.82 | 65.35*118.80*1.65 | MIPI | -20~70 | 300-600 |
| 7 | 90-07018-IH2 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 90-07005-001 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 90-08004-BS1 | 800*1280 | IPS | 107.64*172.22 | 114.60*184.10*2.60 | MIPI | -20~70 | 300-600 |
| 9 | 90-09001-BH1 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 90-09701-001 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 10.1 | 90-10116-IH1 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 90-10301-BS3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 90-10251-001 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 90-10402-001 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 90-12101-HH1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 90-13301-BH1 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15001-AH1 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15002-BH1 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 90-15601-AH2 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 90-17301-BH1 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
