Product Description:

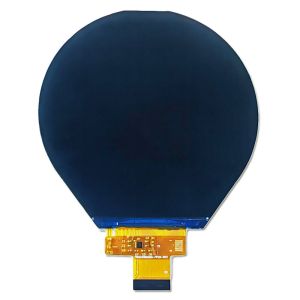

800*800 Pixels 3.4 inch High Resolution TFT Display IPS LCD Module
Round Screen
The Mipi LCD display is designed to be used in harsh environments
and can withstand extreme temperatures. With a storage temperature
range of -30℃ to 80℃, this display can handle almost any
conditions. This makes it ideal for use in outdoor applications,
such as digital signage or portable navigation devices.
The high brightness TFT LCD module has a luminance of 350 nits,
which makes it easy to view in bright sunlight or other high
ambient light conditions. This feature also makes it perfect for
use in low-light environments, such as medical equipment or
industrial machinery.
The active area of the display measures 87.6*87.6mm, providing
ample space for displaying important information. The display is
easy to integrate into your existing system and is compatible with
a range of controllers.
In summary, the High Resolution TFT Display is a versatile,
reliable, and high-quality product. Whether you need a display for
medical devices, handheld devices, or industrial automation
equipment, this Mipi LCD display is the perfect solution. With its
IPS panel TFT display, high brightness TFT LCD module, and
impressive storage temperature range, it can handle almost any
conditions.
Features:
- Product Name: High Resolution TFT Display
- Contrast Ratio: 1200:1
- Outline Dimension(mm): 94.9*96.95*2.18
- Viewing Angle: IPS panel TFT display
- Resolution: 800*800 Pixels
- Interface: MIPI
- Manufacturers: TFT display manufacturers
- Features: High brightness TFT LCD module
Technical Parameters:
| Product Attribute | Value |
| Product Name | High Resolution TFT Display |
| Size (inch) | 3.4 |
| Resolution | 800*800 Pixels |
| Contrast Ratio | 1200:1 |
| Viewing Angle | IPS |
| Active Area (mm) | 87.6*87.6 |
| Luminance (nits) | 350 |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Outline Dimension (mm) | 94.9*96.95*2.18 |
| Interface | MIPI |
| Product Type | Industrial Touch Screen Display, Industrial LCD Display, TFT LCD
Display Module |
Applications:
ISO 9241 certification ensures that the product meets the
international standard for ergonomics and ease of use. IEC62341
certification guarantees that the display is free from any harmful
substances, meeting environmental standards. JEITA CP-3451
certification ensures that the product is reliable and
long-lasting, and ANSI/AAMI ES60601-1-2 certification guarantees
that the product is safe to use in medical applications.
The 3.4 inch display size, with an outline dimension of
94.9*96.95*2.18 mm, makes it perfect for small-scale applications.
The display can withstand temperatures ranging from -30℃ to 80℃,
making it suitable for use in harsh environments. With an LED
lifetime of 30k hours, the display is durable and long-lasting.
The viewing angle of the display is IPS, which ensures that the
display can be viewed from any angle without any color degradation
or loss of contrast. The product has a supply ability of 5k-20k
pieces per day, making it easily available for use in large-scale
projects.
In summary, Manufacturer's High Resolution TFT Display (Model
Number: 90-03401-001) is an industrial TFT LCD that is suitable for
various industry applications. With its LVDS display interface and
high-resolution TFT monitor, it is an ideal choice for any industry
that requires high-quality displays with a wide viewing angle. The
product is certified to meet international standards, has a durable
design, and is easily available at an affordable price.
Customization:
Size: From 1.77 inch to 17 inch
Imteraface: SPI ；MCU; RGB; MIPI; LVDS; EDP
Brightness: 200-1000 nits
Lifetime: 10k-50k
Touch Screen: PCAP; Capacitive touch screen, Resistive Touch screen
Wide Temperature: -40℃~85 ℃
Support and Services:
Our High Resolution TFT Display product comes with comprehensive
technical support and services to ensure that you have a smooth and
hassle-free experience with our product. Here are some of the
technical support and services we offer:
- User manuals and product guides to help you get started with our
product
- Email and phone support to assist you with any questions or
issues you may encounter
- Repairs and replacements for any defective or malfunctioning
products
- Customization and development services to meet your specific
needs and requirements
- Quality assurance and testing to ensure that our product meets
industry standards and specifications
- Training and education for your team to help maximize the
benefits of our product
Some Classic Products in our company for reference( All products
can be tailored according to your requirements)
Size
(inch) | P/N | Resolution | Viewing
angle | Active Area
(mm) | Module Size
(mm) | Interface | OP℃ | Luminance(nit) |
| 2 | 90-02005-001 | 480*360 | IPS | 40.8*30.6 | 46.1*40.96*2.54 | RGB | -20~70 | 200-500 |
| 2 | 90-02009-001 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 90-03507-001 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 90-03521-BH1 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 90-04304-001 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 90-05024-001 | 720*1280 | IPS | 61.78*109.82 | 65.35*118.80*1.65 | MIPI | -20~70 | 300-600 |
| 7 | 90-07018-IH2 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 90-07005-001 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 90-08004-BS1 | 800*1280 | IPS | 107.64*172.22 | 114.60*184.10*2.60 | MIPI | -20~70 | 300-600 |
| 9 | 90-09001-BH1 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 90-09701-001 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 10.1 | 90-10116-IH1 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 90-10301-BS3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 90-10251-001 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 90-10402-001 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 90-12101-HH1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 90-13301-BH1 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15001-AH1 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15002-BH1 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 90-15601-AH2 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 90-17301-BH1 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
